FPGA Programming for Embedded Systems: A Practical Guide for Hardware Designers and Engineers

FPGA programming for embedded systems has become a powerful tool in the world of electronics, enabling custom hardware-level control and flexibility that traditional microcontrollers often can’t match. In modern embedded development, from signal processing and communications to real-time control and AI acceleration, FPGAs (Field-Programmable Gate Arrays) allow engineers to implement logic tailored to specific performance goals. As embedded systems grow more sophisticated, efficient pcb design becomes increasingly vital to support the pin density, power distribution, and high-speed signaling associated with FPGA integration.

This article offers a detailed breakdown of FPGA programming for embedded systems, how it compares to microcontroller-based designs, how to get started, and where it’s being used today. We’ll also touch on relevant development tools, HDL languages, and practical hardware design tips to help you succeed in your next embedded project.

What is FPGA in Embedded Systems

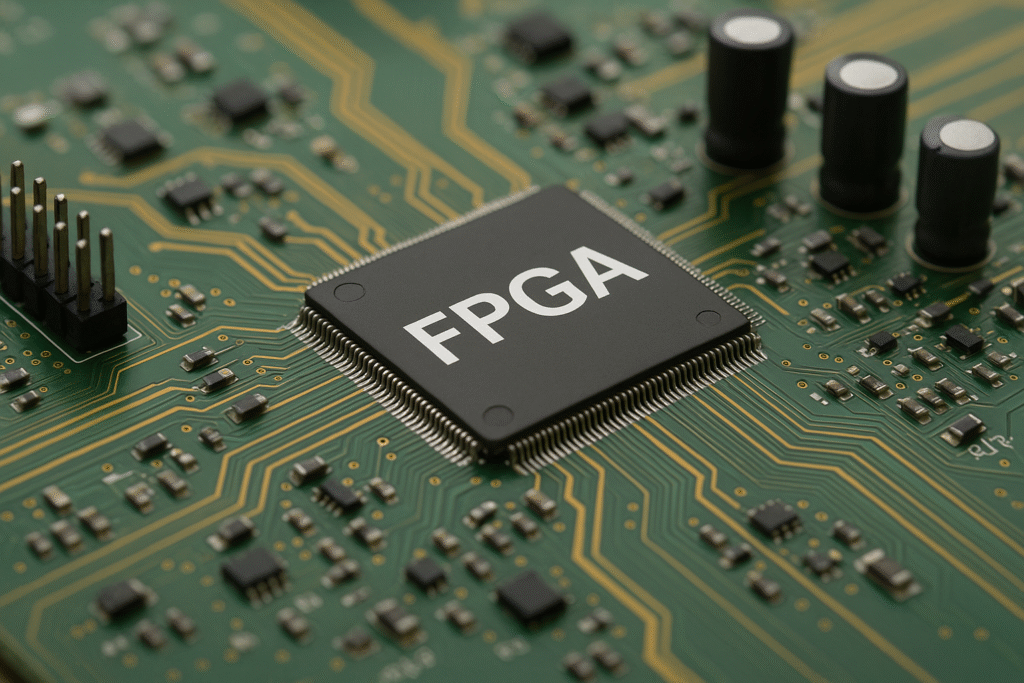

An FPGA is a semiconductor device that consists of a matrix of configurable logic blocks (CLBs) and programmable interconnects. Unlike fixed-function ASICs, FPGAs can be reprogrammed even after manufacturing, making them extremely useful for prototyping, testing, and applications that require hardware-level customization.

In embedded systems, FPGAs often serve as the processing core, working either independently or alongside a microcontroller or processor. FPGAs are ideal for tasks that require parallelism, real-time data processing, or high-speed interface bridging. This includes video processing, motor control, cryptographic engines, and signal acquisition.

What sets FPGAs apart is their ability to implement concurrent logic. While a software processor executes one instruction at a time (or a few in parallel using cores or threads), an FPGA can execute thousands of operations simultaneously across its logic gates. This gives it a huge advantage in time-sensitive or high-throughput applications.

FPGA Programming for Beginners

Getting started with FPGA programming might seem intimidating due to its hardware-centric nature, but the learning curve is manageable with the right tools and mindset.

1. Understand the basics of digital logic: Before working with FPGAs, it’s helpful to understand combinational logic (AND, OR, NOT gates), sequential logic (flip-flops, counters), and finite state machines. These are the building blocks of FPGA functionality.

2. Learn an HDL (Hardware Description Language): The two most commonly used HDLs are Verilog and VHDL. These languages describe how hardware behaves, not how software executes. There are also newer tools like SystemVerilog and Chisel for more complex designs.

3. Use simulation tools: Simulators such as ModelSim or Vivado’s built-in simulator let you test your HDL code in a virtual environment before uploading it to actual hardware. This is key to verifying timing, logic, and control flow.

4. Start with a development board: Popular boards include the Digilent Nexys series, Terasic DE10-Nano (which supports Intel FPGAs), and Xilinx Artix-7 boards. These provide everything you need: FPGA chip, I/O pins, power supply, memory, and sometimes USB, HDMI, or Wi-Fi.

5. Get familiar with FPGA development environments:

• Xilinx Vivado for Xilinx FPGAs
• Intel Quartus Prime for Intel (Altera) FPGAs
• Lattice Diamond or Radiant for Lattice FPGAs

These environments offer synthesis tools, simulators, constraint managers, and bitstream generators for programming your device.

6. Burn the design into the FPGA: Once your logic is verified in simulation, the design is compiled into a bitstream that configures the FPGA’s internal logic. This bitstream is uploaded via USB JTAG, SPI, or other supported interfaces.

How to Program FPGAs

FPGA programming follows a hardware-centric workflow that differs from traditional embedded software development.

Step 1: Define behavior with HDL
Using Verilog or VHDL, you describe the desired function at the register-transfer level (RTL). For example, you might write a module for a UART, PWM controller, or digital filter.

Step 2: Functional simulation
Run your code through a simulator to verify logic behavior. You provide stimulus via testbenches and observe outputs.

Step 3: Synthesis and mapping
The HDL is converted into logic gates and flip-flops, mapped onto the FPGA’s physical resources. Constraints are added to guide pin assignments and timing.

Step 4: Place and route
The synthesized logic is assigned to physical locations on the FPGA and interconnected. This step ensures timing requirements are met.

Step 5: Bitstream generation
A configuration file (bitstream) is created to program the actual FPGA hardware.

Step 6: Programming the FPGA
The bitstream is downloaded to the FPGA via JTAG, flash, or SD card. Some FPGAs retain configuration only while powered (SRAM-based), while others use non-volatile flash.

FPGA programming can also involve embedded soft processors (e.g., MicroBlaze, Nios II) which allow C/C++ development to run inside the FPGA alongside custom logic blocks.

Difference Between FPGA and Microcontroller

While FPGAs and microcontrollers are both used in embedded systems, they serve different purposes and offer unique trade-offs:

A practical example: An FPGA might process 1080p video in real-time, while a microcontroller would be suitable for setting the brightness of an LED based on sensor input. Some applications combine both for the best results.

Applications of FPGA in Embedded Systems

FPGAs are found in a wide range of embedded applications:

1. Industrial automation:
FPGAs are used in motor control, real-time feedback systems, and high-speed data acquisition. Their low latency and determinism are key advantages.

2. Telecommunications:
They process high-bandwidth data streams, perform digital up/down conversion, handle packet switching, and accelerate protocol stack processing in base stations and routers.

3. Aerospace and defense:
FPGAs are used in radar, avionics, signal jamming, and encryption due to their reconfigurability, reliability, and deterministic behavior.

4. Automotive systems:
Applications include advanced driver-assistance systems (ADAS), lidar processing, and in-vehicle networking, where real-time performance is essential.

5. Video and imaging:
FPGAs are well-suited to parallel pixel processing, frame buffering, and real-time effects in cameras and broadcast equipment.

6. Medical devices:
They support image reconstruction in diagnostic imaging, bio-signal processing, and reliable data pipelines in life-support systems.

7. AI acceleration:
FPGAs can execute custom inference engines optimized for edge applications like object detection, speech recognition, and neural network evaluation with lower latency than CPUs or GPUs.

8. Cryptography and security:
FPGAs support custom encryption and authentication logic with higher speed and security than general-purpose processors.

PCB Design Considerations for FPGA Integration

Integrating an FPGA into your embedded hardware requires careful attention to pcb design:

• Power delivery: FPGAs require multiple power rails (core, I/O, PLL). Use proper LDOs or DC-DC converters, and provide good decoupling capacitors near each power pin.
• High-speed routing: Clock and data lines (e.g., DDR, LVDS, HDMI) need impedance-controlled traces, matched lengths, and proper termination to avoid signal distortion.
• Thermal management: FPGAs can dissipate significant heat. Use copper pours, vias, and heat sinks as needed.
• Configuration interfaces: Add JTAG headers, boot configuration resistors, and flash memory to allow firmware updates and debugging.
• I/O flexibility: Choose FPGAs with the appropriate number of general-purpose I/O and support for required standards (3.3V, 1.8V, LVDS, etc.)
• Ground planes: Maintain continuous ground planes to support signal integrity and reduce EMI.

Good pcb design directly affects your FPGA’s performance, reliability, and power efficiency, especially when operating at high frequencies or in noisy environments.

Best Practices for FPGA Projects

To succeed in FPGA programming for embedded systems:

• Start small: Write and simulate basic logic circuits (e.g., counters, UARTs) before moving on to complete systems.
• Modularize code: Break your design into reusable modules with defined inputs/outputs.
• Use version control: HDL projects benefit greatly from Git and structured documentation.
• Validate with testbenches: Simulation prevents many hardware bugs and saves time.
• Analyze timing: Always review the timing report to confirm that your design meets clock and data constraints.
• Plan for debug: Add internal signal monitors (ILA, SignalTap) and spare pins for LEDs or status outputs to help with hardware testing.
• Document constraints: Clearly define pinouts, I/O standards, and clock sources in a constraints file.
• Monitor resource usage: Synthesis tools report LUTs, FFs, block RAM, DSP slices, and other FPGA resources consumed by your design.

Conclusion

FPGA programming for embedded systems opens a wide range of possibilities that traditional microcontrollers cannot offer. From real-time signal processing to hardware-accelerated AI at the edge, FPGAs provide unmatched flexibility and performance. While the learning curve may be steeper due to the use of HDL and hardware-level thinking, the payoff is significant—especially for systems where timing, speed, and customization matter. With solid pcb design and thoughtful planning, integrating an FPGA into your embedded application can take your project to the next level.
