Revolutionizing Flight: PCB Design for Aerospace Applications and Future Innovations

Introduction

Printed Circuit Boards (PCBs) are the foundational building blocks of modern electronics, providing the pathways that allow components to communicate and function in synergy. Within the aerospace industry, where electronic systems must withstand highly demanding operational conditions, PCB design takes on an even greater significance. The stringent requirements, complex regulations, and specialized materials involved in PCB Design for Aerospace applications make this field both challenging and crucial for mission success. Whether it is a satellite orbiting Earth, an aircraft’s avionics system, or a spacecraft exploring Mars, the reliability and performance of the onboard electronic systems often depend on the quality of the Aerospace PCB Design.

This article delves into the many facets of PCB Design for Aerospace Applications, addressing the stringent standards, specialized materials, and cutting-edge technologies that come into play. It will also explore cost management strategies, testing protocols, and real-world examples that highlight the complexities and achievements in this specialized field.

1. Aerospace PCB Design

Aerospace PCB Design is a specialized discipline that takes into account extreme environmental conditions, including drastic temperature variations, high levels of vibration, radiation exposure, and low atmospheric pressure. Traditional PCB design methods are insufficient for aerospace demands; each step from conceptualization to manufacturing must be carefully engineered to meet reliability and safety criteria.

One of the defining characteristics of Aerospace PCB Design is its emphasis on durability. Since aircraft, satellites, and spacecraft operate in environments where repairs are difficult or impossible, the PCBs must maintain long operational lifespans, often without direct human intervention. Additionally, they often serve critical functions, such as flight control and power distribution. Any malfunction can lead to severe consequences, including mission failure or endangerment of human life.

Another critical feature is the scale and density of the circuit. Aerospace systems typically involve compact, lightweight equipment to reduce fuel consumption and optimize space. As a result, engineers rely on high-density interconnects (HDI) and multi-layer stack-ups that allow for complex circuitry in a small footprint. This density comes with unique challenges regarding heat dissipation, signal integrity, and mechanical reliability, all of which must be meticulously addressed.

2. Standards and Regulations

The aerospace industry is governed by a range of stringent standards and regulations to ensure the safety, reliability, and performance of electronic systems. PCB Design for aerospace applications must therefore comply with these guidelines, which are typically set forth by international agencies, military organizations, and industry consortia. Key standards include:

1. IPC Class 3: Developed by the Association Connecting Electronics Industries (IPC), Class 3 standards demand the highest level of reliability, intended for “critical” or “harsh environment” applications. This classification ensures that the PCB can withstand extended use in extreme conditions.

2. MIL-PRF-31032 and MIL-PRF-50884: These U.S. military specifications outline performance requirements for rigid and flexible PCBs. They set expectations on material performance, manufacturing processes, and testing procedures that must be met to be considered fit for military and aerospace applications.

3. AS9100: This is a widely recognized Quality Management System standard for the aerospace industry. Although it covers more than just PCBs, it provides a framework for consistent quality and reliability across the supply chain.

4. RTCA DO-160: This standard focuses on environmental conditions and test procedures for airborne equipment. It defines the range of tests—including temperature, vibration, and altitude—that aerospace electronics must pass.

5. European Space Agency (ESA) Standards: The ESA issues guidelines and specifications that govern space-related projects. These cover the entire lifecycle of electronics, from design to decommissioning.


Compliance is not a one-time check but an ongoing process. Manufacturers and design engineers must be continually aware of updates to regulations, which may be prompted by technological advancements, accidents, or new discoveries. Adhering to these standards is essential to prevent product failures, legal complications, and reputational damage.

3. Material Selection

In Aerospace PCB Design, choosing the right materials is a pivotal decision that can significantly impact system performance, reliability, and cost. The materials must withstand extreme temperature swings, radiation (in space applications), and mechanical stresses such as shock and vibration.

1. Base Material: FR-4 is a common substrate for commercial PCBs but may not always meet aerospace demands due to its limited thermal stability. Polyimide and PTFE (Teflon)-based laminates offer better heat resistance and dimensional stability, making them more suitable for aerospace environments.

2. Copper Foil: Thicker copper layers can handle higher current loads but may increase the board’s weight and cost. In aerospace applications, a balanced approach is needed—one that maintains adequate current-carrying capacity without adding unnecessary mass.

3. Plating and Surface Finishes:

   • ENIG (Electroless Nickel Immersion Gold): Provides good surface planarity and oxidation resistance, making it suitable for fine-pitch components and mission-critical connectors.

   • HASL (Hot Air Solder Leveling): Although cost-effective, it may not be the best choice for high-reliability aerospace boards due to uneven surface finishes and lead usage in some variations.

   • OSP (Organic Solderability Preservatives): Offers a flat surface finish but is less durable for multiple solder reflows.

4. Dielectric Materials: High-frequency or high-speed aerospace applications often require low-loss dielectric materials to maintain signal integrity. Rogers or other advanced laminates can help reduce dielectric loss and improve overall performance.

5. High-Temperature Substrates: For applications facing extreme heat, specially formulated ceramic-based or metal-core PCBs may be required. Metal Core PCBs (MCPCBs) can dissipate heat more efficiently but may impose higher manufacturing costs.
   Beyond these technical factors, material selection is also influenced by availability, lead times, and compatibility with manufacturing equipment. Engineers must ensure that all chosen materials meet the necessary industry standards while balancing cost and performance.

4. Design Guidelines

Effective PCB Design for aerospace requires an understanding of both the electrical and mechanical demands placed on the board. Below are key guidelines that designers typically follow:

1. Stack-Up and Layer Management:

   • Multi-Layer Boards: Aerospace systems frequently utilize multi-layer configurations to fit complex circuits in limited space. The layer stack-up must be carefully planned to reduce electromagnetic interference (EMI) and improve signal integrity.

   • Ground and Power Planes: Using dedicated planes for power and ground helps stabilize voltage levels and minimize noise. Proper placement of these planes is vital for reducing the risk of signal crosstalk and voltage drops.

2. Trace Width and Spacing:

   • Impedance Control: High-speed signals require precise impedance control to avoid signal degradation. This often necessitates close collaboration with PCB fabricators to achieve consistent copper thickness and dielectric spacing.

   • Thermal Relief: For power components, trace width should be adequate to handle the required current without generating excessive heat.

3. Component Placement:

   • Thermal Zones: Group components with similar thermal characteristics together, ensuring that heat is dissipated effectively.

   • Vibration Considerations: In high-vibration environments, heavier or more delicate components should be placed near the center of the board and secured with additional mechanical support if necessary.

4. Routing and Via Management:

   • Via Types: Blind, buried, and micro vias can help save space and enhance reliability. However, each type introduces different cost considerations and limitations regarding aspect ratios and drilling tolerances.

   • Thermal Vias: Adding vias under or around heat-generating components can help direct heat away from sensitive circuitry, improving overall board reliability.

5. EMI/EMC Mitigation:

   • Shielding: Metal shields or ground planes can reduce electromagnetic interference.

   • Filtering and Decoupling: The placement of capacitors and ferrite beads can help filter out high-frequency noise and stabilize power distribution.


By following these guidelines, aerospace PCB designers can create boards that are structurally sound, electrically robust, and able to withstand extreme environments. These guidelines serve as a foundation, but each design must also consider any unique mission or application-specific requirements.

5. Thermal Management

Heat is a persistent challenge in aerospace electronics, given the high component densities and constrained spaces typical of satellites and aircraft. Moreover, the external environment can range from the extreme cold of outer space to the high-temperature zones near aircraft engines.

Active and Passive Cooling:

• Active methods (like forced air cooling or liquid cooling loops) are often impractical in many aerospace missions, especially in the vacuum of space where convection is impossible.

• Passive methods (like heat pipes, thermal radiators, and conduction cooling) play a dominant role. Effective conduction paths must be built into the PCB design, ensuring heat flows away from critical components and into chassis or other heat-dissipating structures.


Thermal Simulation and Modeling: Before production, designers often use computational fluid dynamics (CFD) and thermal modeling software to analyze heat flow through the PCB. This simulation phase is crucial to validate design decisions, identify hot spots, and optimize the PCB layout to reduce operating temperatures.

Material Choices: As discussed earlier, the choice of substrate and copper thickness are significant factors in thermal management. Additional strategies include using thermal interface materials (TIMs), heat spreaders, and thermally conductive adhesives.

Ensuring adequate thermal management is indispensable for Aerospace PCB Design, as even minor overheating can degrade component life, reduce performance, and ultimately risk mission success.

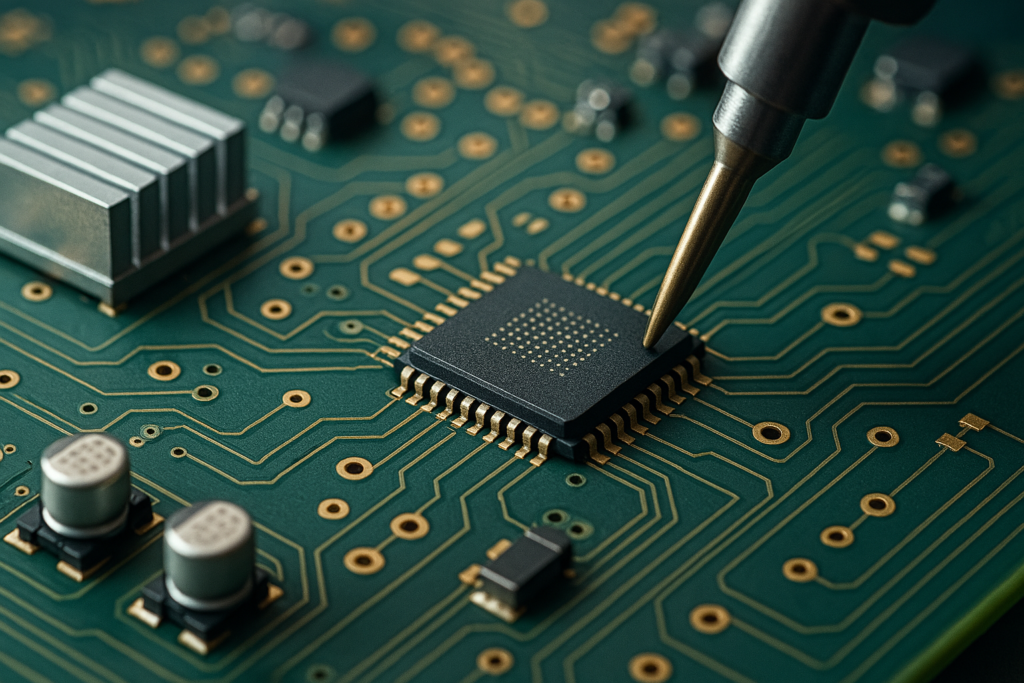

6. Testing and Validation Procedures

Given the high-stakes nature of aerospace missions, rigorous testing and validation procedures are mandatory. Each Aerospace PCB Design undergoes multiple stages of testing:

1. Environmental Stress Screening (ESS):

   • Thermal Cycling: The board is subjected to repeated heating and cooling cycles to identify weak solder joints or component failures.

   • Vibration and Shock Testing: Simulates launch, landing, and turbulence conditions.

2. Electrical Testing:

   • ICT (In-Circuit Testing): Verifies the continuity of traces, component values, and solder joints.

   • Functional Testing: Ensures the board performs its intended operations under nominal conditions.

3. EMI/EMC Testing:

   • Radiated Emissions: Measures the electromagnetic energy emitted by the board, ensuring it stays below regulatory thresholds.

   • Susceptibility: Assesses whether external electromagnetic fields can disrupt the PCB’s operation.

4. Reliability and Failure Analysis:

   • Highly Accelerated Life Test (HALT): Accelerates the aging process to predict long-term reliability.

   • Failure Modes, Effects, and Criticality Analysis (FMECA): Systematically examines potential failure points to mitigate risks before mass production.

5. Radiation Testing (for space applications):

   • TID (Total Ionizing Dose): Evaluates how prolonged exposure to radiation degrades electronic components.

   • Single-Event Effects (SEEs): Tests the PCB’s response to instantaneous radiation events like single-event upsets (SEUs).


Testing protocols are typically repeated at various stages of manufacturing and assembly to catch defects early. Once production begins, periodic audits are common to ensure that consistency is maintained and that any design changes still comply with the required standards.

7. Emerging Technologies in Aerospace PCB Design

Rapid technological advancements continue to shape Aerospace PCB Design, leading to new capabilities and design paradigms:

1. Flexible and Rigid-Flex PCBs:

   • These boards combine rigid and flexible substrates to accommodate complex geometries within aircraft and satellites, reducing the need for connectors and simplifying assembly. They also lower weight and improve reliability in high-vibration conditions.

2. Additive Manufacturing (3D Printing):

   • Although still in the early adoption phase for PCBs, additive manufacturing has the potential to revolutionize circuit creation. Complex shapes, embedded components, and specialized material compositions can be integrated in ways traditional methods cannot match.

3. High-Speed and High-Frequency Technologies:

   • The demand for faster data processing and high-resolution sensors in aerospace systems has increased the use of high-frequency materials (like Rogers) and advanced signal-integrity techniques. This trend is especially relevant in radar, communication, and navigation systems.

4. Miniaturization and Nano-Engineering:

   • As satellites shrink in size (CubeSats and SmallSats) and as demands for more compact avionics grow, the need for miniaturized PCBs has surged. Nano-engineered substrates and advanced packaging technologies (e.g., System-in-Package, SiP) are beginning to find footholds in aerospace applications.

5. Advanced Thermal Management Solutions:

   • Novel materials such as graphene films or phase-change materials are being explored to manage heat more effectively in spacecraft electronics.


These emerging technologies promise greater efficiency, reduced mass, and better reliability. However, they also introduce new design complexities, supply chain challenges, and qualification hurdles.

8. Cost Management in Aerospace PCB Projects

Despite the critical nature of aerospace missions, cost constraints remain a significant concern. Even large-scale government or commercial space programs operate under budgetary pressures, and cost overruns can jeopardize project viability. Some strategies to manage costs include:

1. Early Collaboration:

   • Cross-Functional Teams: Bringing design engineers, manufacturers, and supply chain experts together in the early design stages can minimize costly design errors.

   • Concurrent Engineering: Parallelizing design, fabrication, and test planning can spot issues earlier, reducing rework and delays.

2. Material Optimization:

   • Buy vs. Build: Sometimes, it is more cost-effective to use commercially available components or standard PCB substrates if they meet the mission’s minimum requirements.

   • Strategic Sourcing: Building long-term relationships with suppliers can reduce material costs and ensure consistent quality.

3. Design for Manufacturing (DFM) and Design for Assembly (DFA):

   • Streamlining design features (e.g., standard hole sizes, panel optimization) can cut production costs.

   • Reducing the number of unique part references can simplify supply chain management.

4. Batch Production and Prototyping:

   • Producing PCBs in larger batches can lower per-unit costs, though this must be balanced against the risk of design changes mid-project.

   • Rapid prototyping allows teams to validate designs at an early stage, minimizing the expense of large-scale manufacturing revisions.

5. Lifecycle Cost Analysis:

   • Aerospace PCBs often have long operational lives. Factoring in maintenance, repair, and upgrade costs from the outset helps avoid unwelcome expenses later.


Balancing innovation with cost containment is a delicate act. The key is meticulous planning and transparent communication among all stakeholders, ensuring that cost-saving measures do not compromise mission reliability or safety.

9. Case Studies

Real-world examples illustrate how Aerospace PCB Design principles translate into tangible success stories. Below are two condensed case studies highlighting critical elements in this specialized field:

Case Study 1: High-Reliability Satellite Power PCB

A satellite manufacturer aimed to design a power distribution PCB that could operate reliably over a ten-year mission life in a geostationary orbit. Key considerations included:

• Material Choice: The design used a polyimide substrate for high thermal resilience and reliability.

• Thermal Management: Thermal vias were strategically placed around regulators and MOSFETs. Heat was conducted to external radiators attached to the chassis.

• Testing: The board underwent extensive thermal cycling and radiation testing to ensure it could withstand the vacuum of space and ionizing radiation.


Outcome: The satellite successfully passed its final acceptance tests and was deployed with minimal modifications. To date, it continues to operate within specified parameters.

Case Study 2: Avionics Control System in Commercial Aircraft

An avionics firm developed a control system PCB that would manage flight-critical functions. The challenges involved strict FAA regulations, significant vibration during flight, and limited available real estate.

• Standards Compliance: Designers adhered to IPC Class 3 and AS9100 protocols, ensuring robust production and traceability.

• Stack-Up: A 10-layer board employed separate ground and power planes to mitigate EMI and maintain signal integrity.

• Cost Management: The firm used concurrent engineering with its fabrication partner, leading to efficient material use and reduced lead times.


Outcome: The avionics system demonstrated reliable performance over a five-year period with minimal in-service issues, cementing the manufacturer’s reputation for quality.

Conclusion

PCB Design for Aerospace applications stands at the forefront of engineering ingenuity, requiring a blend of advanced materials, precise manufacturing techniques, and stringent quality controls. From satellites that circle our planet to the spacecraft that venture into the deepest corners of the solar system, Aerospace PCB Design must tackle challenges far beyond those found in more conventional electronics.

The process is governed by rigorous standards and regulations that leave little room for error. Material selection and careful design guidelines underpin the durability and reliability required in harsh operational environments, while thermal management is a constant concern due to the absence of straightforward cooling mechanisms, especially in space. Comprehensive testing and validation procedures guard against failure, and emerging technologies promise to reshape the landscape in the coming years—enabling lighter, more efficient, and increasingly resilient PCB architectures.

Cost management strategies also play a critical role in keeping programs financially sustainable. Achieving the right balance between reliability and expense often involves cross-disciplinary collaboration, early vendor engagement, and designing with manufacturability in mind.

Ultimately, PCB Design for Aerospace Applications is a dynamic field that continues to evolve as new innovations become available. Engineers must remain adaptive, informed, and diligent, applying best practices and advanced techniques to ensure successful missions, whether they involve routine commercial flights or pioneering interplanetary exploration.
